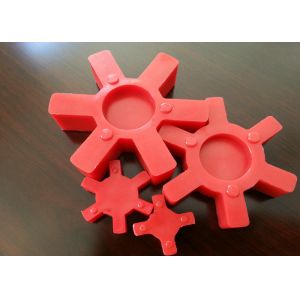

L Type Flange Cast Iron Polyurethane Coupling , Flexible Jaw Coupling

Brand Name : 3A Rubber

Model Number : 3A2006

Certification : ROHS/FCC/SGS

Place of Origin : China

MOQ : 10pieces

Price : negotiation

Payment Terms : T/T, L/C, Paypal, Western Union

Supply Ability : 10000kgs per month

Delivery Time : 10 working days after received your payment

Packaging Details : Packed in cartons

Material : NBR, CSM/SBR or TPU

Color : black, red

hardness : 80-98shore A

Size : L035-225

Working Temperature : -20oC - +100oC

Contact Now

L type rubber coupling , L polyurethane coupling , L PU coupling

Specifications

1. Material :Cast iron GG25
2. Good stability
3. Easy to maintain
4. ISO9001-2000 certificate


Coupling:

1. Jaw coupling/ HRC coupling / KC coupling / FL coupling

2. Flange cast iron, Insert Bubber

3. Taper bore universal series

4. Keyway dimensions conform to DIN6885,GB1095-1979 standards.

SizeTypeABDEStandardMetric BoreInch Bore
BoreMinMaxMinMax
L03511620.56.6--3381/8"3/8"
L05012843.215.6--66153/16"5/8"
L07013550.819--99193/16"3/4"
L07514554.721--99253/16"1"
L09015454.721--99283/16"1 1/8"
L09515463.725.5--99283/8"1 1/8"
L099164.572.527--1212357/16"1 3/8"
L100164.588.535--1212357/16"1 3/8"
L11018510843--1515481/2"1 7/8"
L150196115.445--1515485/8"1 7/8"
L1901115133.454101.61919555/8"2 1/4"
L2251127153.4641081919653/4"2 5/8"

Others standard size for polyurethane coupling:
GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276
FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R


standard size for rubber coupling:
Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225
NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J
special size build molding according to the buyer's drawings
